PC Opaque Plate Making Machine PC Heat Resistance Sheet Extrusion Line Single Screw Extruder

  • 1
  • 2
  • 3

Brand Name : GWELL

Model Number : GWS120/GWP75

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 sets/year

Delivery Time : 90-100 days after all the technical requirements are confirmed

Packaging Details : STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS

Certification : CE

Product name : PC Opaque Plate Making Machine PC Heat Resistance Sheet Extrusion Line Single Screw Extruder

Machine type : Plastic sheet extrusion line

Brand : GWELL

Suitable material : ABS

Width : 1200mm

Thickness : 0.2-1.5mm

Screw design : Single screw/Parallel twin screw

Country of origin : China

Warranty : Guarantee period

After-sales service : installation and machine commissioning

Contact Now

PC Opaque Plate Making Machine PC Heat Resistance Sheet Extrusion Line Single Screw Extruder

1. Introduction of PC Opaque Plate Making Machine

GWELL's PC Opaque Plate Making Machine can produce multi-purpose PC sheets with a thickness of 0.15mm-2mm. We use advanced machine manufacturing technology to make the machine run more smoothly and efficiently and reduce the failure rate. Our PC Opaque Plate Making Machine can also produce PP and PE sheets. It can achieve the purpose of one machine with multiple functions.PC Opaque Plate Making Machine

PC Opaque Plate Making Machine PC Heat Resistance Sheet Extrusion Line Single Screw Extruder

2. Model of PC Opaque Plate Making Machine:

Type of extruder Single screw extruder Parallel twin screw extruder
Max width of product 800mm--1300mm
Thickness of product 0.15mm-2mm 0.2mm-2mm
Output 150kg/h-450kg/h

200kg/h-600kg/h

PC Opaque Plate Making Machine PC Heat Resistance Sheet Extrusion Line Single Screw Extruder

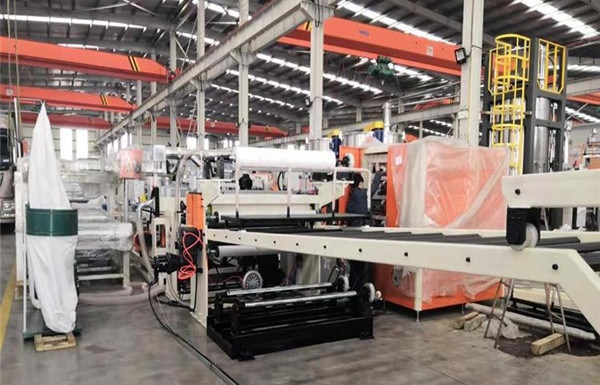

3. The PC Opaque Plate Making Machine​ consists of the following parts

(1) Vacuum feeder: transport raw materials to the extruder

(2) Single screw extruder: plasticize raw materials and extrude molten raw materials

(3) Mold: according to customer requirements of the thickness range

(4) Three-roller calender: The diameter and length of the roller can be designed and manufactured according to customer requirements

(5) Cooling brackets: it is a cooling and conveying device

(6) Traction machine: use double pairs of rollers to haul the sheet

(7) Cutting unit: the role of cutting sheets

(8) Other auxiliary machines: chiller, air compressor, etc



PC Opaque Plate Making Machine PC Heat Resistance Sheet Extrusion Line Single Screw Extruder
